Case Study Daylights

Daylight case studies from installed locations

Daylights bring sunlight inside the building without any heat, thereby eliminating the need for electrical lights in the daytime. This article gives an overview of the various Skyshade daylights installed across India.

Lightpipe Installations

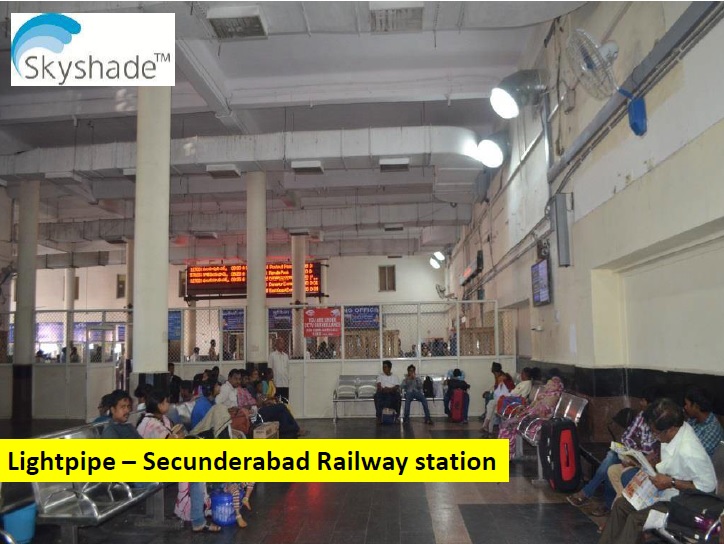

Lightpipe at Railways

Locations

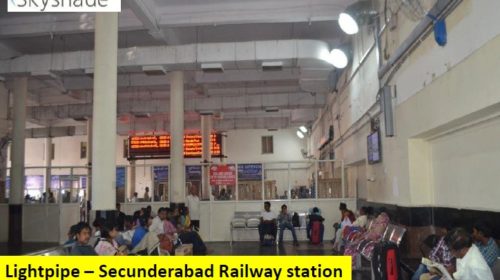

  1. Railway Station

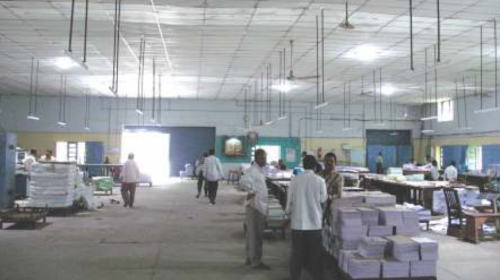

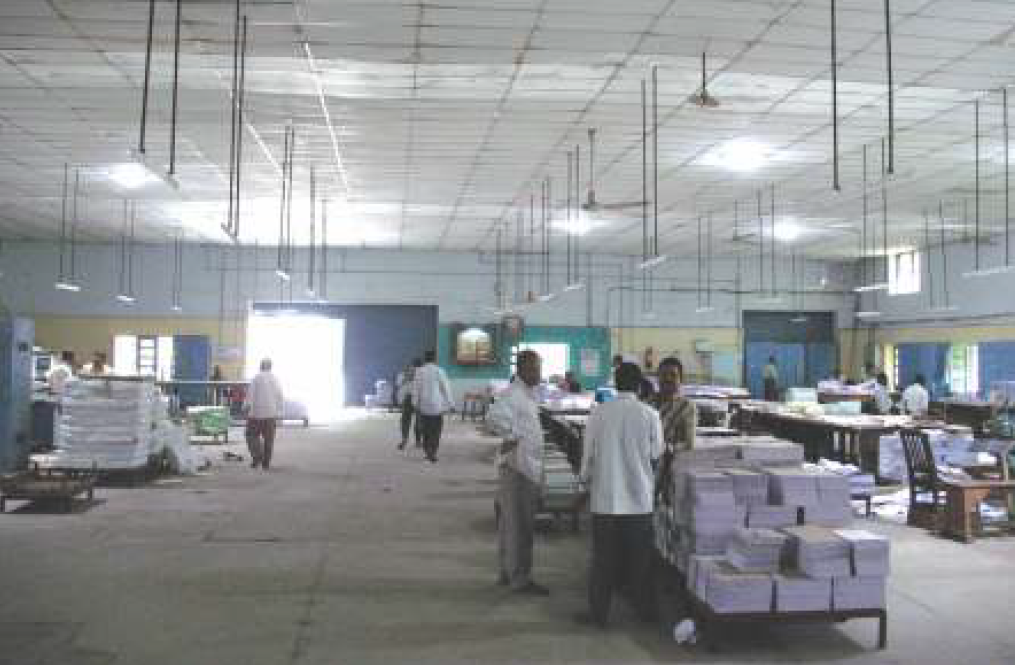

  2. Printing Press
  3. Loco Sheds

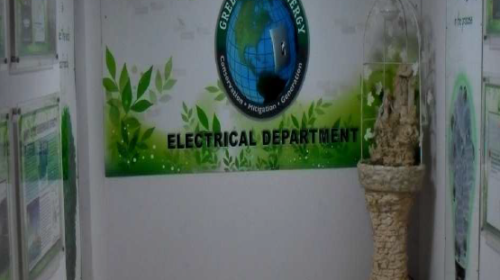

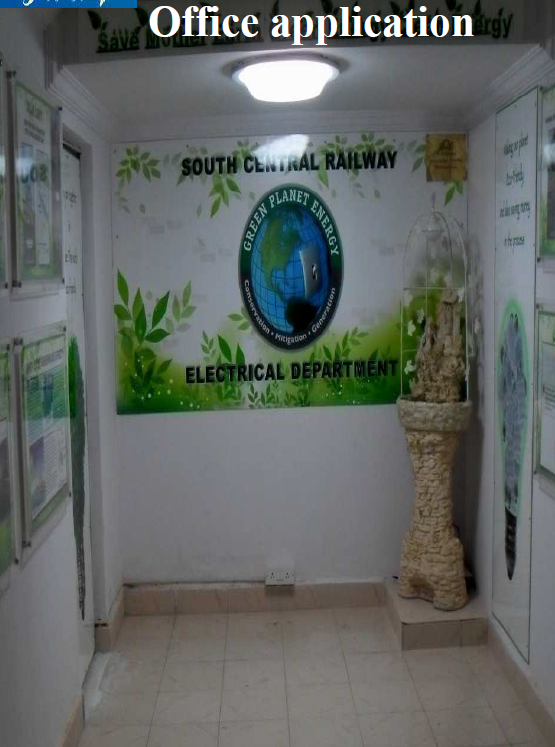

  4. Offices

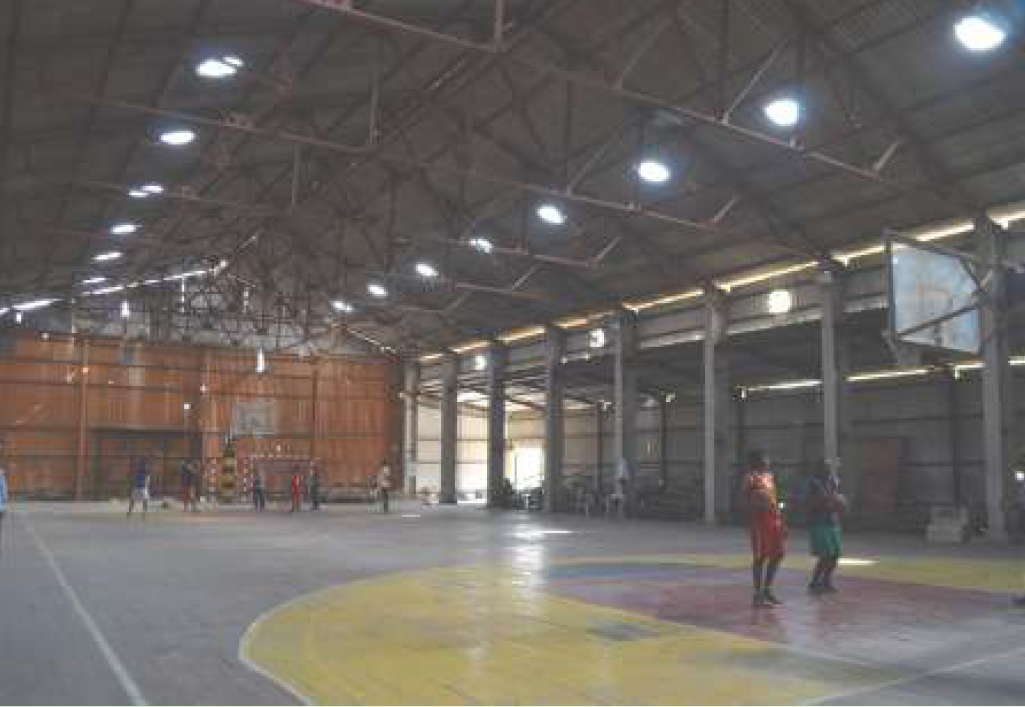

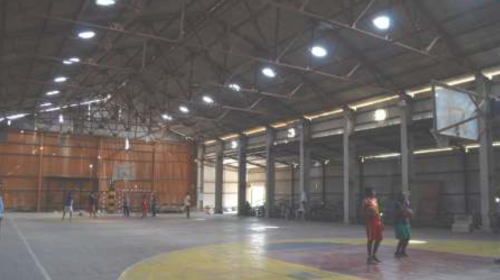

  5. Sports Complexes
  6. Central Hospital

Deatils of Lightpipe installation at Railways

ParametersValues
Installed Lightpipes530mm - 100 Nos.
Payback Period3 Years
Return on Investment50%

Click on the image to zoom.

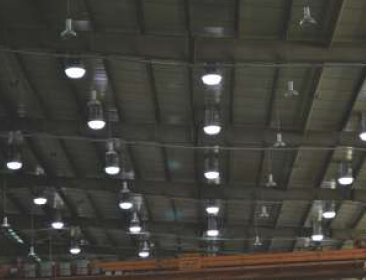

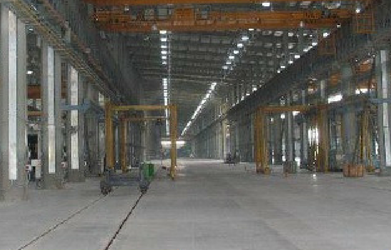

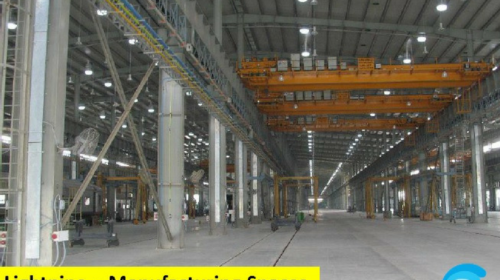

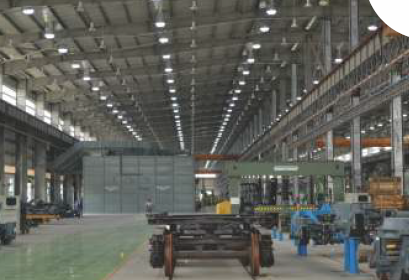

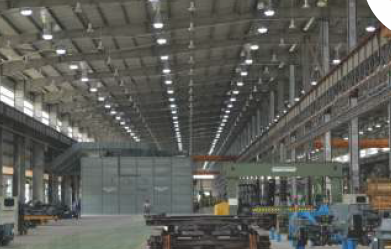

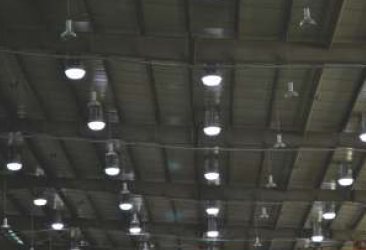

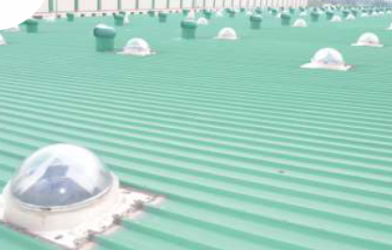

Modern Rail Coach Factory, Rae Bareli, UP

Locations

  1. Shell Fabrication Unit
  2. Wheel & Paint Shops
  3. Coach manufacturing units

Details of Lightpipe installation at Modern Rail Coach Factory

ParametersValues
Total Area120760 Sq.m.
Installed Lightpipes750mm – 1506 nos.
Payback period3 Years
Energy Saving17.89 lalkh Kwh (units) per annum
Return on Investment40%
Carbon di Oxide reduction2037 tons per annum

Click on the image to zoom.

Lightpipes at Pharamceutical Industry

skyshade-lightpipe-aurobindo
Skyshade Lightpipes at Aurobindo Pharamceuticals

Pharmaceutical companies that have installed Skyshade Lightpipes




ParametersValues
No. of manufacturing units8
Total Area Coverage3,63,129 Sq.ft.
Installed Lightpipes530mm – 600 Nos.
Energy Saving Potential70%
Return on Investment58%
Payback period20 months

Skyshade Lightpipes at pharmaceutical industry

Aurobindo Pharamceuticals | AstraZeneca | AVRA | CADILA | Pharamzella | Dr. Reddy’s | Hetero | Granules | Mylan

Lightpipes at Automobile & Accessories Industry

Skyshade Lightpipe atMageti Mareli

Details of Lightpipes installed at Auto Industry

ParametersValues
Total Area Coverage3400 Sq.m.
Installed Lightpipes36 Nos.
False Ceiling Height6m
Lightpipe length8m
Energy Saving Potential39600 Kwh

skyshade-lightpipe-automobil-industry-2
Skyshade Lightpipe atMageti Mareli

Auto Companies that have installed Lightpipes

TATA Motors | MRF | Hero Honda | JCB | Good Year | Mahindra Rise | Amaraja | Kirloskar | Gabriel | Hyundai | JK Tyre | Bosch | The Hindu | Titan | Indo MIM | Ford | Stanadyne | Brakes India | Lucas TVS

Lightpipes at Food  & Beverages Industry

skyshade-lightpipe-daylight-industry

Food & Beverage Companies that have installed Lightpipes

Jain | Coco Cola | ​Pepsi | ITC | Kaveri Seeds | Mother Dairy​​

Details of Lightpipes installed at Dairy Industry

ParametersValues
Total Area Coverage1500 Sq.m.
Installed Lightpipes27 Nos.
Energy Saving Potential39,798 Kwh per Annum
Payback Period26 months
Return on Investment46%

Skyshade Lightpipes installed at Cement Industry

skyshade-lightpipe-cement-industry

Cement Companies that have installed Skyshade Lightpipes

Chettinad Cement | Ramco Cement | Vasavadatta Cement

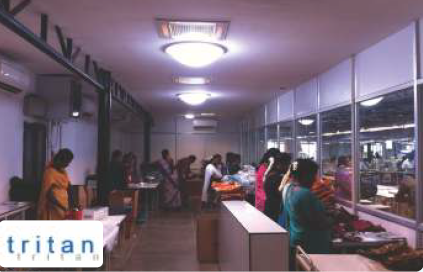

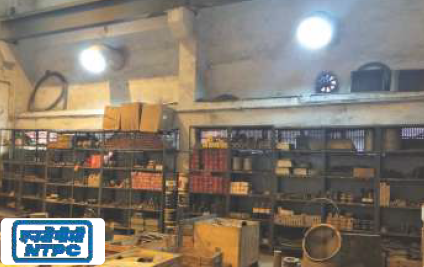

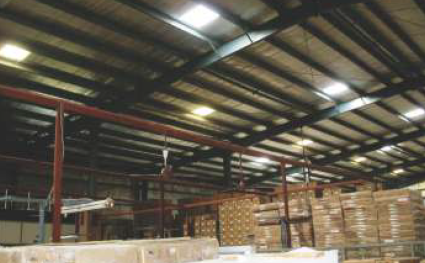

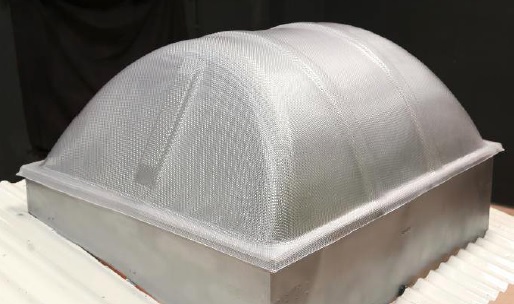

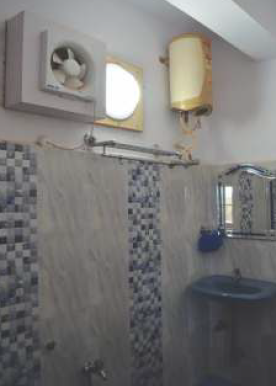

Other Skyshade Lightpipe Installations

Click on the image to zoom.

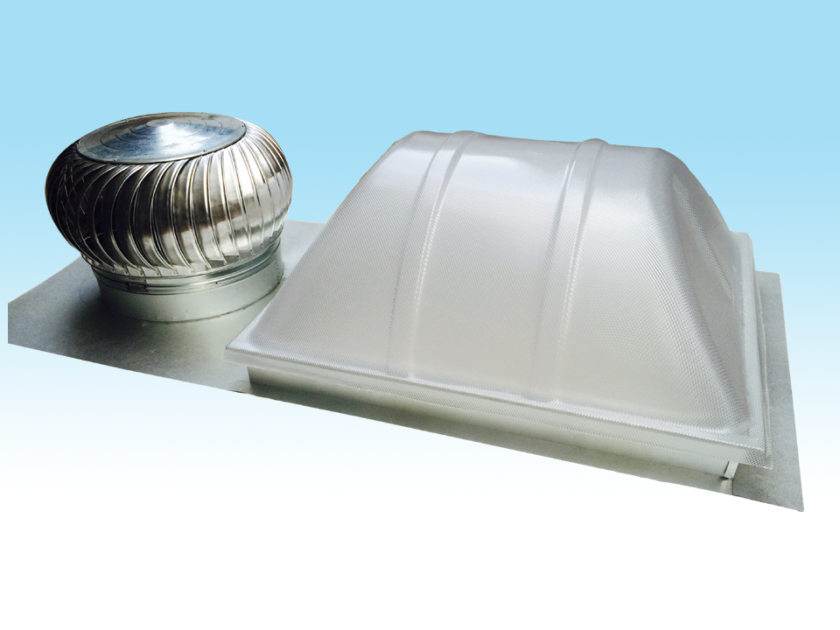

skyshade-norikool-arcelor-mittal
Skyshade Norikool at Arcelor Mittal

Details of Skyshade Norikool installed at Arcelor Mittal

ValueParameters
Factory building area13,500 sq.m.
Installed Norikool1m x 1.2m – 135 nos.
Daylight200 – 250 lux
Payback Period11 months
Return on Investment111%

skyshade-norikool-regina-tea-factory
Skyshade Norikool at Regina Tea Factory, Assam

Details of Skyshade Norikool installed at Regina Tea Factory, Assam

ValueParameters
Factory building area36,000 sq.m.
Installed Norikool1m x 1.2m – 12 nos.
Daylight300 lux
Payback Period3 Years

skyshade-norikool-textile-industry
Skyshade Norikool at Shahi Exports, Bengaluru

Details of Skyshade Norikool installed at Shahi Exports, Bengaluru

ValueParameters
Factory building area49,203 sq.m.
Installed Norikool1m x 1.2m – 35 nos.
Payback Period30 months

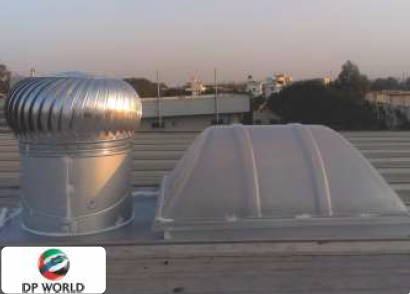

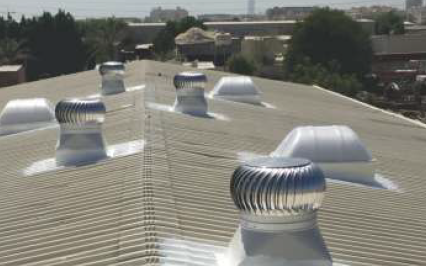

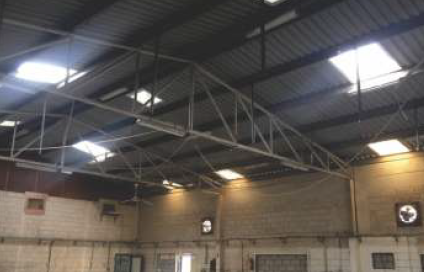

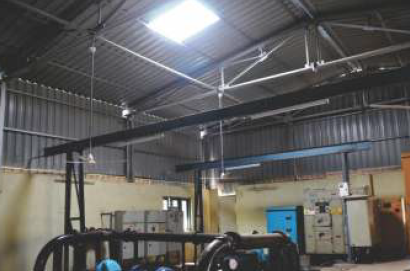

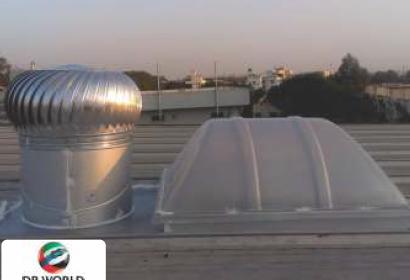

Some of the other Skyshade Norikool Installations
