Description
Norikool Glazing Description
| Glazing layer | Glazing Material |
|---|---|
| Outer Glazing | 3mm thick clear Prismatic poly carbonate lens. |
| Intermediate Glazing (applicable only to triple glazing) | 3mm thick clear Prismatic poly carbonate lens. |
| Inside Glazing (not applicable to single glazing) | 2mm thick pigmented poly carbonate lens. |

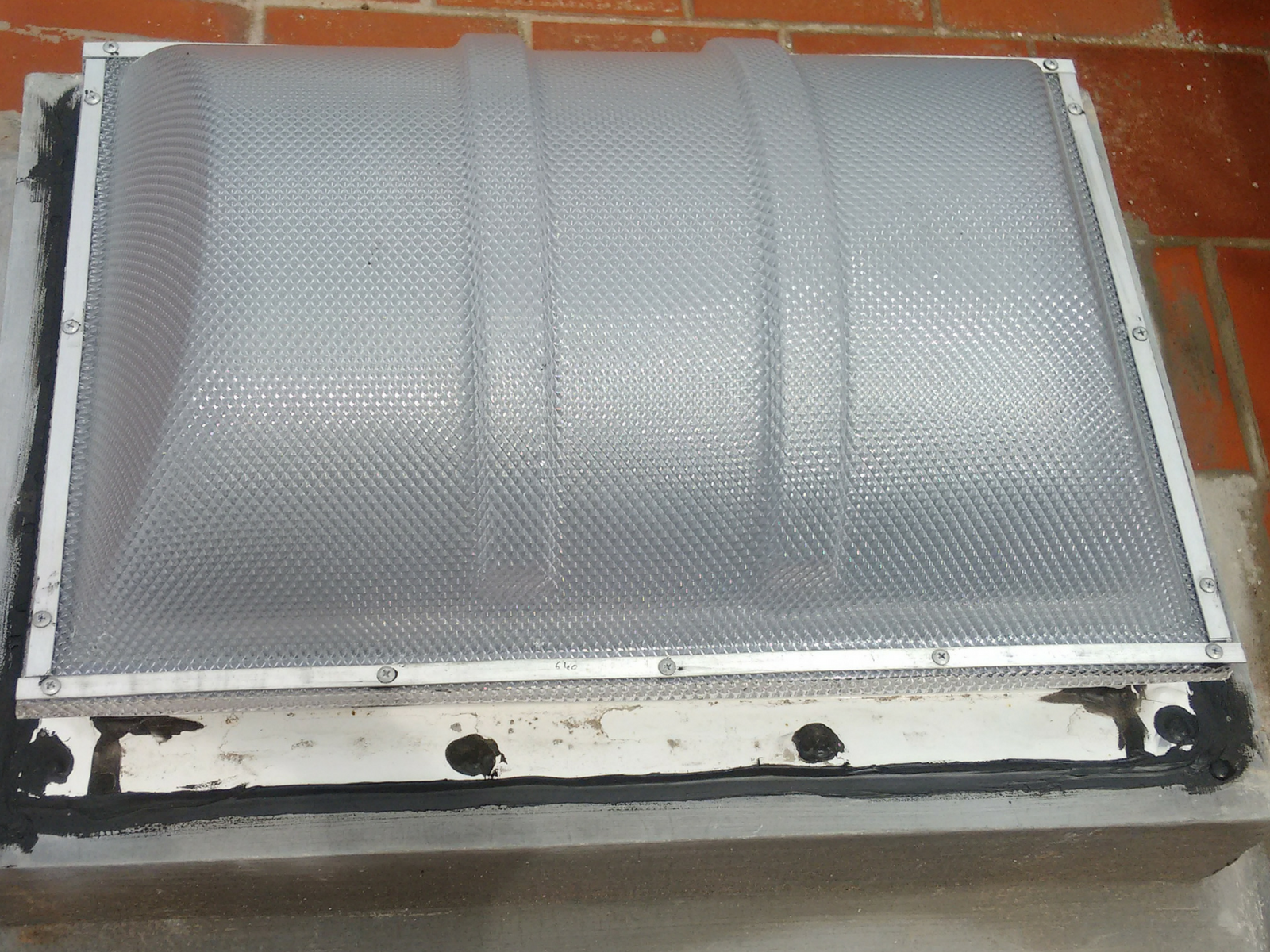

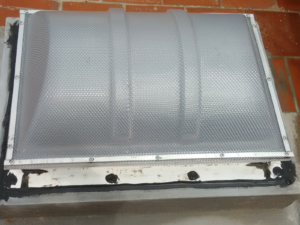

Norikool Dimensions - NK 64 DGZ
| Parameters | Units |
|---|---|
| Aperture Dimensions | 0.6m X 0.4m |
| Flange Outer Dimensions | 0.65m X 0.45m |
| Roof Metal Kerb | Metal Kerb built with 0.6mm thick Galvanized iron sheet, completely welded. |
| Metal kerb height on upward side | 125mm |
| Gasket between glazing and metal kerb | 3mm thick EPDM |
| Glazing fixing hardware | Stainless steel Nut & Bolts |
Norikool Glazing Material Properties
| Property | Method | Value |
|---|---|---|
| Impact strength- IZOD Notched: | ASTMD-256 | 800 J/M |
| Long term Service Temperature | -500to + 100 C | |
| Heat Deflection Temperature | ASTMD – 648 | 135 C |
| Light Transmission: | 72 % | |
| Yellowness Index | ASTMD-1925 | <1 |
| Flammability | ASTMD-635 DIN 4102 | CC1 B1,B2 |
Features
- Daylighting improves LEED ratings of green buildings.
- High light transmission = 72 %.
- Uniform lighting distribution across the space.
- Double/Triple glazed system.
- Noise reduction.
- Factory manufactured metal Kerb for leak proof arrangement.
- Long life, maintenance free Daylighting solution.
- Warranty 5 Years.
LEED Ratings
Daylighting improves LEED ratings of green buildings. Points can be scored on aspects of daylight availability, controls, Renewable energy and etc. in green buildings.
Key Benifits
- Long Daylighting
- Zero energy Consumption
- No heat buildup
- Less than 2% of roof area
- Leed rating credits
