Skyshade Lightpipe 300mm

16,045.7124,908.57

GST – 5% EXTRA

TheLightpipe® is an innovative technology for daylight transportation and Energy efficiency in buildings without heat. It has a Sunlight capture system (Light collector), light transfer pipe and double glazed light diffuser. The Lightpipe solar lighting system delivers clean, light energy into building spaces giving a feeling of well-being and saving electrical energy for lighting during Daytime. It delivers sunlight without any colour shift.

Lumen Output: 4,000 lumens

SCROLL DOWN FOR SPECIFICATIONS

Approximate Area Coverage: 150 Sq.ft.

Maximum Length: 6m

Warranty: 5 Years Leak proof onsite warranty

Applications: Factory Shop Floor | Warehouse | Office Space | Basement
SCROLL DOWN FOR SPECIFICATIONS

Clear

Description

Lightpipe - Sunlight Capture System

S.No.ParametersSpecifications
1Sunlight Collector CoverThe Transparent, Clear dome allows light to be
collected across the sky from all directions.
2ShapeIt should be moulded, Single Piece, dome
shaped.
3MaterialClear, transparent polycarbonate.
4ThicknessTo be formed out of 3mm thick clear
polycarbonate sheet.
5UV coating thickness for Raw
material sheet
80 Microns
6UV BlockUpto 99% (UV A&B)
7Impact Strength600-800 J/M (ASTM D256)
8Flame Redundancy Limiting Oxygen index LOI -25(ISO 4589 ASTMD 2863)
9Light Transmission83% Test Standard
10Heat Resistance Temperative45º - 150º Celsius (DIN 53460)(VICAT VST/B)
11Thermal Conductivity0.21 /m0c (DIN 52612)

Lightpipe - Light Transfer System - 400mm

S.No.ParametersSpecifications
1Diameter 400 mm
2ShapeCylindrical Shape
3MaterialAluminum
4Total Reflectivity98%
5Material ThicknessNot less than 0.4 mm
6Protection Film PE foil not UV Resistant
7Bends (in degrees)90 & 45
8Universal Roof adopter Two piece, adjustable, universal roof adopter of
standard length (570mm - 600mm)
9Adjustable angle0° - 30° pitch angle of roofs. For angles above 30°,
customer to specify
10DiametersTo match LPR 400mm

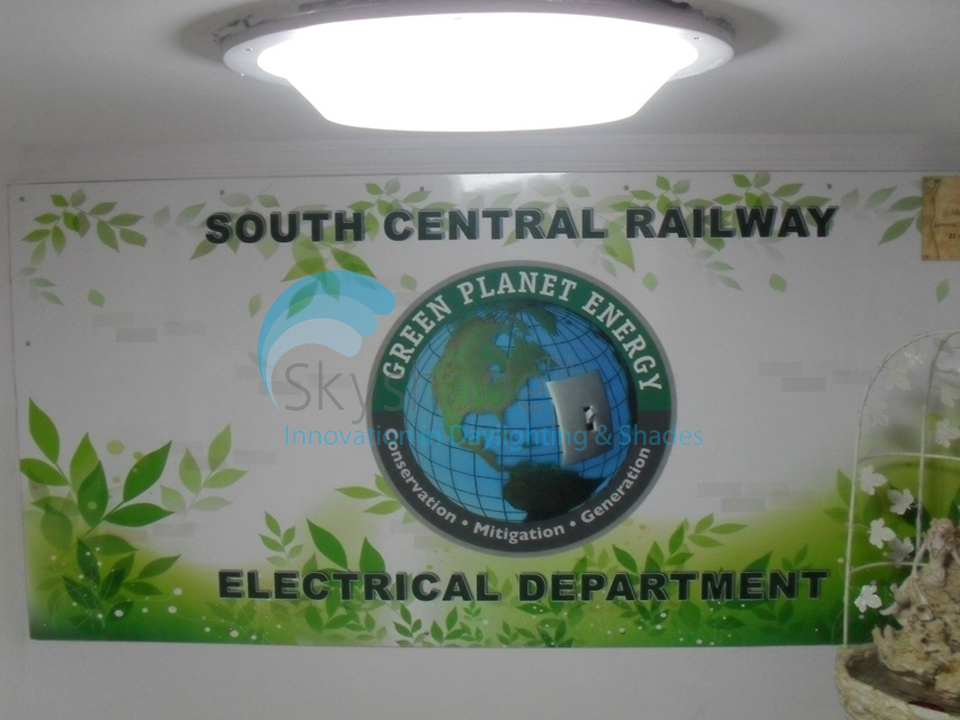

Lightpipe - Light Diffuser

S.No.ParametersSpecification
1ShapeIt should be moulded, single piece flat/ Dome Shape (like a flat
bowl) for better distribution of light.
2MaterialPolycarbonate Clear Bright Prismatic or Pigmented Soft White skyshade-lightpipe-clear-bright-diffuser skyshade-lightpipe-soft-white-diffuser
3ThicknessTo be formed out of 2mm Thick material.
4Light
Transmission
Not less than 80%.
5Diffuser RingInjection molded ABS plastic ring - white color.
6Double
Glazing
Diffuser double glazed with 1.0mm thick clear polycarbonate with
90% Light Transmission.
7Diffuser to
pipe fixing
Locking provision of pipe into the diffuser ring with silicon seal.

Lightpipe - Roof Kerb

S.No.ParametersSpecifications
1ConstructionTwo piece box roof kerb; factory
made universal roof kerb.skyshade-lightpipe-roofkerb
2MaterialRoof kerb made of 0.5mm bare galvalume sheet of 240 MPA.
3Surface
finish
Powder coated
4Water
splash
protection
Kerb top side pointed arrow design with water breaker
arrangement.
5Water
proofing
method
Two seal system; Primary Seal – Butyl Rubber sealant and
Secondary seal–Dow corning 789 high coefficient expansion silicon
sealant.
6Roof Crest
blocking
caps
Factory made bare galvalume sheet metal caps.

Lightpipe - Fixing Accessories

S.No.ParametersSpecifications
1Light Collector
dome fixing
gasket
Self-adhesive 10mm thick cushion EPDM rubber gasket.
2Light collector to
roof kerb fixing
Bolting system is followed. (Direct drilling of screws into
the Dome is prohibited strictly).
3Aluminum Tape50mm width to cover all circumference joints and
longitudinal joints of pipes.
4RivetsAluminum
5Flashing plate to
roof screws
Self-driving screws with EPDM gasket washer or aluminum
riveting.

Advantages

  • Light capture is high at low sun angles, i.e before 9am and after 3pm.
  • Extended daylighting hours.
  • No heat build up.
  • Uniform light dispersion.
  • Daylight can reach the false ceiling covered areas.

Key Benefits

  • Low angle sunlight (morning & Evening) is boosted
  • Light pipe delivers more uniform day lighting throughout the day
  • Midnoon sun radiation is partially rejected
  • Blocks UV radiation
  • High impact strength
  • No change of light color
  • Durable & long life
  • Maintenance free



Additional information

Length

1.2m, 1.8m, 2.4m, 3m, 3.6m, 4.2m, 4.8m
