Sale!

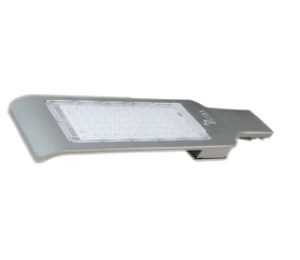

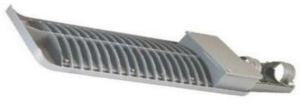

SYSKA LED Street light – SSK-NST-20W

1,427.68 1,250.00

GST – 12% EXTRA

These NST series LED street lights are sleek and designed attractively. They are also very economical and last longer.

SCROLL DOWN FOR SPECIFICATIONS

Out of stock

Description

Specification of SYSKA NST LED Street Light SSK-NST-20W

DescriptionValue
Input Power20W
Input Voltage90 - 300V AC 50 Hz
Size (mm)283x112x43
Life expectancy of LEDs> 50000 hrs.
Color Temperature3000K-6500K
CRI>75
Power Factor> 0.95 At Full Load & 240 VAC
Beam Angle120°
Luminous Efficacy of LED Package>120 Lumens/Watt
System Efficacy of Luminaire>100 Lum/Watt
Lumens>2000
Make of LEDLUMILED/OSRAM
Operating Temperature(-)20°C to (+) 60°C
THD (Total Harmonic Distortion)<15% as per IEC 61000-3-2
Driver Efficiency>85%
Line ProtectionUnder Voltage and Over Voltage Protection
Lamp HousingHigh Pressure Diecast aluminum housing with Stainless Steel fastners
EMI - EMC (Electro-magnetic
Interference - Electro-magnetic
compatibility)
As Per CISPER 15 A (Self compliance certificate)
Lens MaterialGlass Cover
Ingress ProtectionUpto IP 65
Impact ResistanceUpto IK 06
Mounting arrangementMounting Bracket
Thermal managementExternal heat sink of Aluminum housing, aluminum metal-core printed circuit board of thermal
conductivity more than than 2.0W/mk and thermal pad with thermal conductivity more than
1.5W/mk.
Type of LED PackageMid Power /High Power SMD
PCB TypeMC PCB
Driver Efficiency>90%
Surge Spike ProtectionUpto 3KV On board
FinishAesthetic and slendor design of housing with powder coated matt/glossy finish.
CoverUV stabilized Polycarbonate Cover with Lens
Mounting ArrangementUpto 40 mm dia pipe
Warranty2 Years

Additional information

Watt

100W, 150W, 200W, 30W, 45W, 50W, 70W
